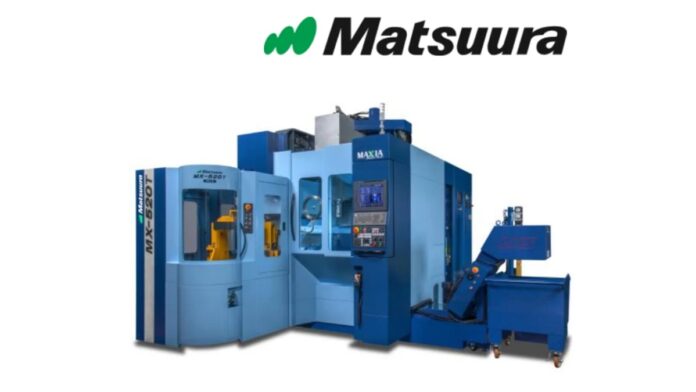

FUKUI, Japan, Nov 29, 2024 – Matsuura Machinery Corporation is pleased to announce the launch of the newly developed MX-520T, a 5-axis multi-tasking machining center. We are accepting orders beginning today.

Advertisements

In response to labor shortages and to maintain cost competitiveness in the manufacturing industry, Matsuura launched the MAM72 Series in 1991 with an innovative multi-pallet system to enable variable part/variable production and extended unmanned operation. Then, in 2006, Matsuura launched the CUBLEX series, a 5-axis multi-tasking machining center based on the MAM72 series that improved productivity by integrating the processes of milling, turning, and grinding—which previously had to be performed on separate machines—all onto a single machining center.

The MX-520, which first hit the market in 2010, was developed using the experience and know-how obtained from the MAM72 series with the goal of creating a machine that could offer a reliable and user-friendly 5-axis machining experience to new and experienced 5-axis users alike. Since then, the MX series 5-axis vertical machining center lineup has been expanded to include the MX-850, MX-330, and MX-420 PC10 (in order of release), and 5-axis machining has become established globally as a means of achieving process integration in manufacturing.

To meet the diverse processing needs of our customers, Matsuura has now developed the MX-520T, a multi-tasking machining center that combines milling and turning processes, while retaining the user-friendliness of the MX series. To further improve productivity, the turning spindle (C-axis) is equipped with a direct drive motor with a maximum rotation speed of 800 RPM and a maximum torque of 500 Nm, ensuring sufficient turning capacity. To support high-precision turning, the spindle uses HSK-T63 for multi-tasking machines and is equipped with a highly rigid brake mechanism as standard, while the spindle nose diameter is kept to the conventional size to ensure access to the workpiece during machining.

For chip removal, a hinge type lift-up chip conveyor is equipped as standard in the space directly below the 4th/5th axis table. Chip removal nozzles with an optimized coolant discharge method are also equipped as standard.

Various support functions for multi-task machining have been added to the new operating system MiOS 4 to ensure safety during the turning process. The space-saving automated system, which combines a floor pallet system (PC4) and a magazine with up to 120 tools, achieves further productivity improvement by adding the capacity for unmanned operation on top of milling/turning process integration. M

MX-520T Features

• 1. Milling and Turning integrated into one machine (process integration by one chucking)
• 2. Specially designed 4th/5th-axis table that combines machining and turning functions
  • 2.1. Max. rotation speed: 800 min-1 (turning mode) / 100 min-1 (machining mode)
  • 2.2. By rotating the A-axis, it can be used as both vertical turning and horizontal turning.
  • 2.3. High resolution scale as standard (A/C axis)
  • 2.4. Scatter prevention function and imbalance check function to ensure turning safety
• 3. Spindle (from heavy duty machining to high speed machining)
  • 3.1. 12,000 min-1 (11/11kW、159Nm) [Standard], 12,000 min-1 (18.5/22kW、191Nm) Power-up type [Option], 15,000 min-1 (18.5/22kW、150Nm) [Option], 20,000 min-1 (15/18.5kW、108Nm) [Option]
  • 3.2. High-rigidity brake mechanism on the spindle as standard for turning operations
  • 3.3. The spindle end is HSK-T63 and can use both machining tools and turning tools.
• 4. Simple Automation System
  • 4.1. PC4 (Floor Pallet System) + 90/120 tool magazine [Option]
  • 4.2. Robot interface + Automatic door (Not available with PC4) [Option]
• 5. Operability / Accessibility
  • 5.1. Matsuura G-Tech 31i (iHMI, 15-inch touch panel screen)
  • 5.2. New operating system “Matsuura integrated Operating System : MiOS 4”
  • 5.3. Collision prevention function “Intelligent Protection System” [Standard]
  • 5.4. Distance from floor to table top surface
  • 5.5. Distance from machine front to table center : 950mm [37.40in.] (with table) : 970mm [38.19in.] (with pallet) : 385mm [15.15in.]
  • 5.6. A sliding roof cover designed for easy crane access in changeover
  • 5.7. Hinge lift-up conveyor equipped as standard for extended unmanned operation
