Guest Post by Mr. Sai Raghavendra, Application Engineer, BEACON
Today’s engineering landscape demands faster decision-making, seamless collaboration, and continuous access to accurate design data. SOLIDWORKS 3DEXPERIENCE delivers a unified cloud-based ecosystem that enables organizations to overcome limitations of location dependency, software installation constraints, and fragmented data management. Through the xDesign applications, users can design, collaborate, and manage product development within a fully connected digital engineering environment. This newsletter highlights the core xDesign tools, their capabilities, and the real-world impact of this integrated ecosystem on modern engineering workflows.

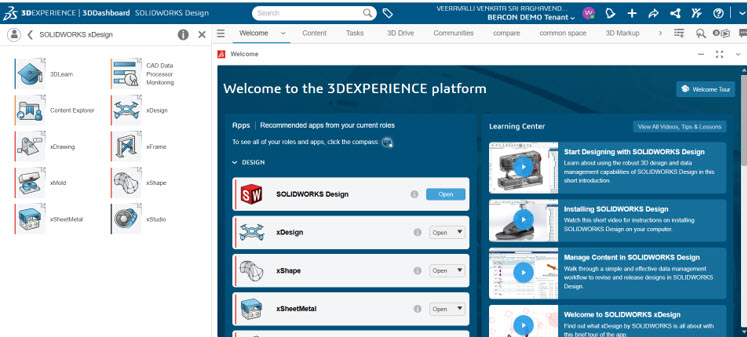

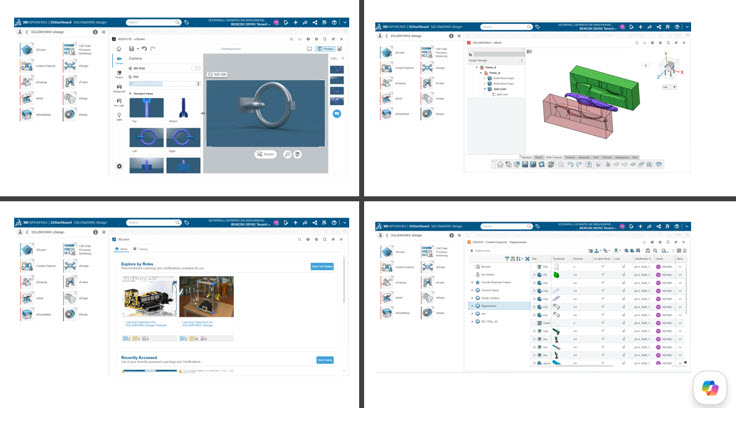

xApps Ecosystem Overview
To better understand how the xDesign ecosystem operates, let us explore the key applications that support design creation, collaboration, manufacturing preparation, and engineering knowledge management within the platform.
xDesign
xDesign is a cloud-native parametric 3D CAD application that enables engineers to create, modify, and manage mechanical parts and assemblies directly within a web browser. It eliminates dependency on local installations and provides secure, anywhere-access to engineering data.
xShape
xShape is a subdivision modeling application used for developing smooth, freeform, and organic geometries during early-stage product design and conceptual development.
xSheetMetal
xSheetMetal is dedicated to sheet metal design and manufacturing preparation, enabling accurate creation of bends, flanges, and flat patterns aligned with production requirements.
xFrame
xFrame is used for structural and welded frame design, commonly applied in machinery, industrial equipment, and mechanical structures.
xDrawing
xDrawing enables automatic generation of manufacturing drawings directly from 3D models within a fully associative and connected environment.
3D Learn
3D Learn is a knowledge and learning environment that helps users understand design intent, parametric modeling principles, and industry best practices through guided examples and real-world scenarios.
xMold
xMold is a specialized tool for mold and tooling design, supporting efficient creation of core-cavity structures, parting surfaces, and injection mold layouts for manufacturing applications.
3D Studio (Visualization & Rendering)
3D Studio provides advanced visualization and rendering capabilities to generate high-fidelity, photorealistic product images for design validation, reviews, and marketing presentations.
CAD Data Process Manager
CAD Data Process Manager manages, converts, and processes multiple CAD file formats within the 3DEXPERIENCE environment, ensuring seamless interoperability and controlled data flow across systems.
Content Explorer
Content Explorer is an intelligent search and reuse tool that enables users to quickly locate engineering data, designs, and components across projects, improving reuse efficiency and reducing redundant work.
Advantages of the xApps Ecosystem
- Parametric Design & Engineering Intent Control
xDesign enables fully parametric modeling where design intent is preserved throughout the product lifecycle. Any modification is automatically propagated across related features, ensuring consistency and reducing manual rework.
- Cloud-Native Accessibility & Global Collaboration
The platform provides secure, browser-based access to engineering data from any location, enabling real-time collaboration between distributed teams, stakeholders, and decision-makers.
- Unified Engineering Environment
All design, visualization, learning, and data management capabilities are integrated into a single digital ecosystem, eliminating fragmented workflows and improving operational efficiency.
- Accelerated Decision-Making
With all stakeholders working on a single, up-to-date source of truth, design reviews, approvals, and engineering decisions are significantly faster and more reliable.
- Streamlined Data Governance
Centralized cloud data management ensures version control, traceability, and consistency, reducing errors caused by outdated or duplicated files.

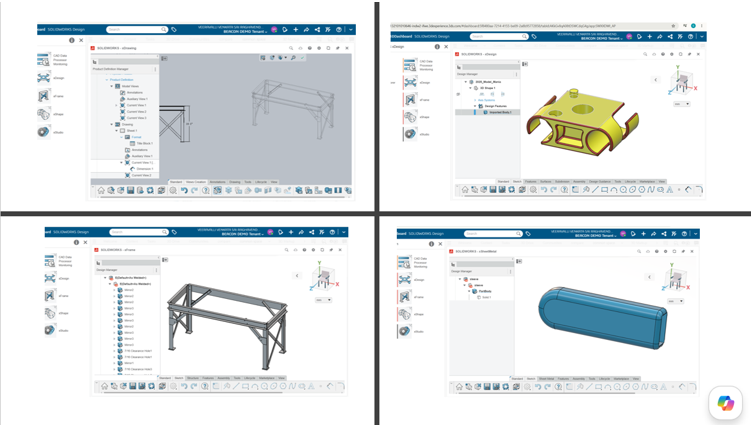

Key Functional Features of xDesign in Real Engineering Workflows
- Parametric 3D Modeling Environment
xDesign provides a fully feature-driven modeling environment where sketches, constraints, and features define intelligent geometry. Any design modification automatically updates dependent elements, preserving model integrity throughout the development cycle.
- Assembly Design & System Simulation
Engineers can build and manage complex assemblies within a single environment, defining relationships and constraints to simulate real-world product behavior before manufacturing.
- Real-Time Collaborative Engineering
Multiple stakeholders can simultaneously access and interact with the same design data, enabling instant feedback, markup, and decision-making without file exchange delays.
- Automated Design Propagation
Any change made to the model is dynamically reflected across all associated components, drawings, and assemblies, eliminating manual synchronization efforts.
- Device-Independent Access
xApps is accessible through any modern web browser, enabling engineers and managers to view or modify designs using laptops, tablets, or mobile devices.
- Integrated Data Control & Version Management
All design data is centrally managed within the 3DEXPERIENCE platform, ensuring a single source of truth and eliminating version conflicts.
- Design Review & Digital Feedback Loop
Stakeholders can review 3D models directly within the platform, apply annotations, and provide structured feedback, significantly improving approval cycles.
Case Study: Accelerated Engineering Decisions in a Distributed Organization
In a typical industrial equipment development scenario, an engineer identified a critical design modification that required immediate approval from the project manager. However, the manager was traveling for a client engagement, while the manufacturing team required urgent confirmation to proceed with production planning. In a conventional CAD workflow, this situation would typically result in delays due to file exchanges, communication gaps, and asynchronous approvals. By leveraging xApps on the 3DEXPERIENCE platform, the project manager was able to access the design in real time through a mobile browser, review the modification, and provide immediate approval. The engineering team implemented the update instantly, and manufacturing continued without interruption.This streamlined workflow significantly reduced communication latency, eliminated unnecessary delays, and improved overall project execution efficiency.
The xApps ecosystem represents a fundamental shift toward connected, cloud-driven engineering, where design creation, collaboration, and decision-making are no longer constrained by location, software dependency, or fragmented data systems. Organizations adopting this approach can achieve enhanced engineering agility, improved cross-functional coordination, and significantly faster product development cycles.
Get in Touch
For organizations looking to modernize their engineering workflows or explore the capabilities of the SOLIDWORKS 3DEXPERIENCE xApps ecosystem, we welcome you to connect with us for further insights and implementation support.
Guest Post by Mr. Sai Raghavendra, Application Engineer, BEACON
